Tecnomed’s range of surgical scialytic light is made up of two different lines that offer exceptional performance in terms of brightness and operation and which are therefore the ideal solution for any work need.

SURGICAL MULTILED LINE

The light par excellence. Ideal for modern operating theatres and outpatient clinics, indispensable for complicated surgeries where constant and consistent light is vital. Illuminates up to 300,000 lux in the double head version.

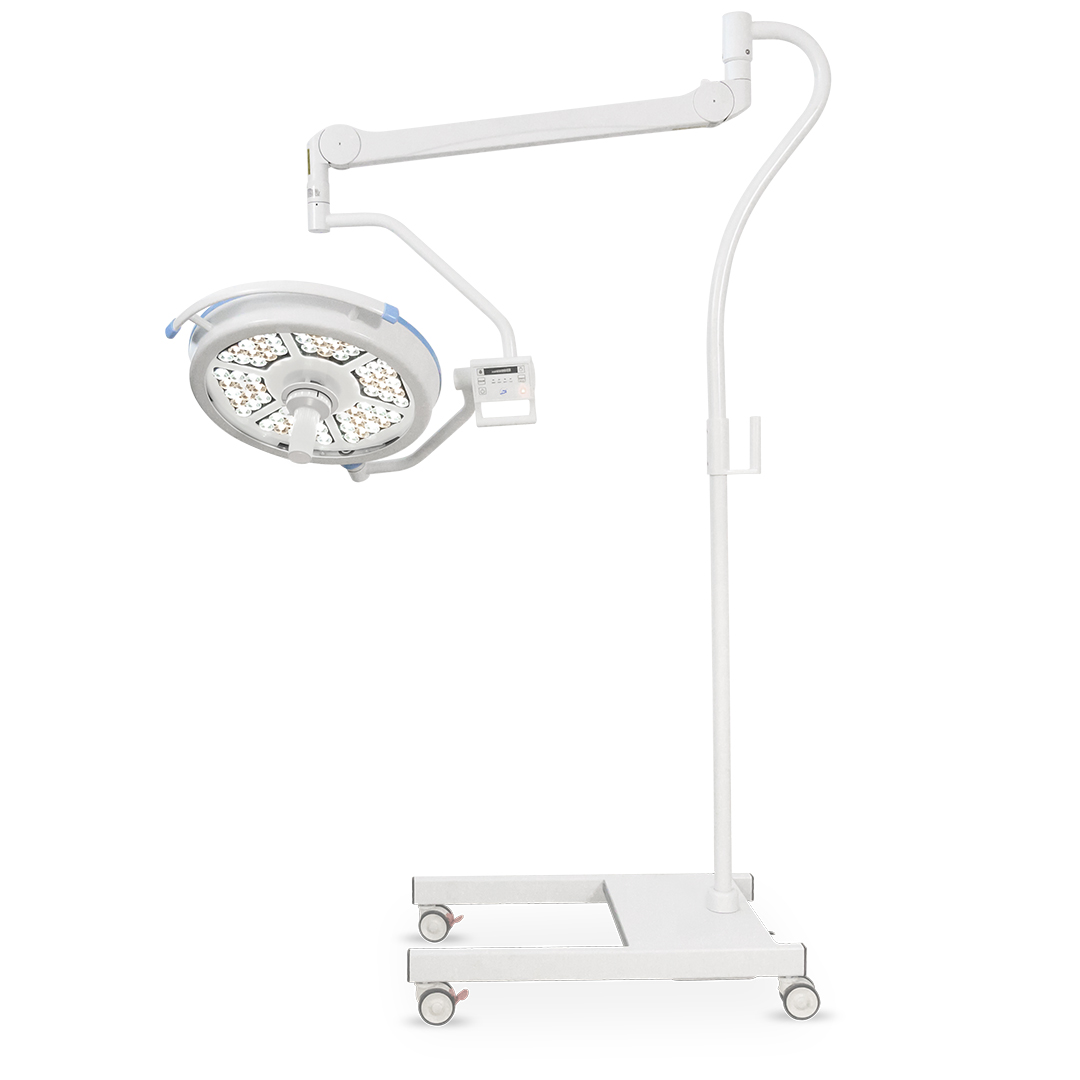

Available in the version on mobile stand, single head installation on the ceiling and double head installation on the ceiling.

Request information

SURGICAL multiLED


Our SURGICAL multiLED surgical lights offer excellent illumination for all dental and non-dental surgical needs.
The functional and linear design, combined with a lightweight structure, make for unrivalled easy-to-handle lights.The suspension system with balanced articulated arm with 6 joints allows stable and precise positioning. The SURGICAL multiLED models are equipped with a colour temperature compensation technology ranging from 3300 K° to 5000 K° and manual adjustment of the light intensity using the control panel.They are also equipped with the “Endo mode” function; that is the support light for endoscopy operations offering light intensity and colour temperature selection.
The intensity can easily be seen on the v-meter bar located on the control panel.
The total reflection optical system is made with CAD/CAM technology, its illumination depth is up to 1300 mm.

Main features

  • Available in the version on mobile stand, single head installation on the ceiling and double head installation on the ceiling.
  • Colour temperature: from 3300 to 5000 k°
  • Colour rendering index (Ra):>95
  • Illumination depth:≥1300mm
  • Total irradiance:426 W/m2
  • Bright field size:160 ~ 280mm
  • Total energy absorption:200 W
  • Maximum installation height:2.9 metres
  • Certification:93/42/EEC - 2007/47/CE – IEC62321
  • Compliance with EN ISO 13485:2016 standards
